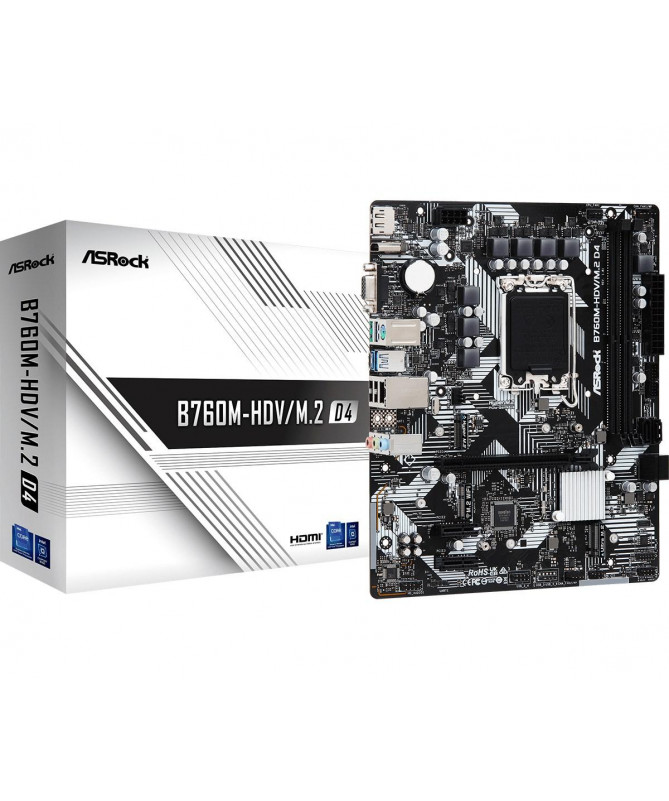

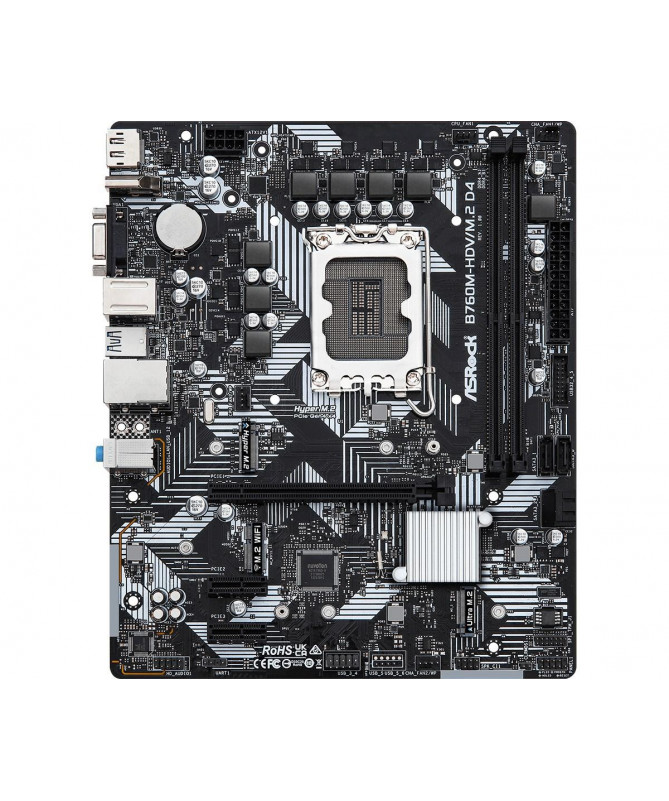

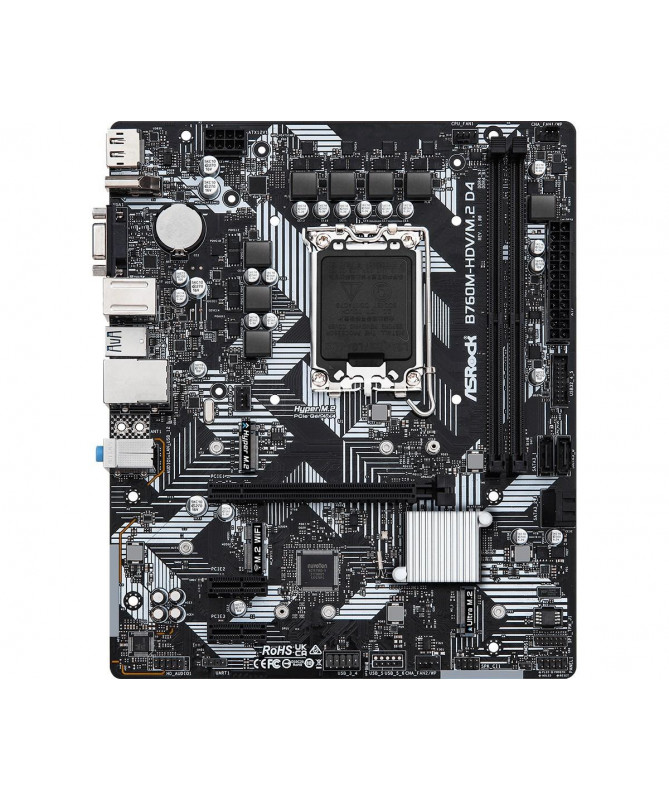

Pllakë amë Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Në stok
- Referenca: PLYASR1700048
- EAN: 4710483942020
- Koha e dërgimit: 10-14 ditë
| USB 2.0 ports quantity : | 2 |
| Width : | 244 mm |
| Ethernet LAN : | Yes |
| Depth : | 201 mm |
| Cables included : | SATA |
| HDMI ports quantity : | 1 |
| VGA (D-Sub) ports quantity : | 1 |
| Wi-Fi : | No |
| Certification : | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Microphone in : | Yes |
| HDCP : | Yes |
| Ethernet LAN (RJ-45) ports : | 1 |
| Ethernet interface type : | Gigabit Ethernet |
| Maximum internal memory : | 64 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : | 3 |
| Memory slots type : | DIMM |
| Processor manufacturer : | Intel |
| Number of M.2 (M) slots : | 1 |
| Number of memory slots : | 2 |
| Motherboard chipset : | Intel B760 |
| RAID levels : | 5 |
| RAID levels : | 10 |
| RAID levels : | 1 |
| RAID levels : | 0 |
| Supported memory clock speeds : | 5333 MHz |
| Supported memory clock speeds : | 4400 |
| Supported memory clock speeds : | 3200 |
| Compatible processor series : | Intel® Core™ i9 |
| Compatible processor series : | Intel® Core™ i7 |
| Compatible processor series : | Intel® Core™ i5 |
| Compatible processor series : | Intel® Core™ i3 |
| LAN controller : | Realtek RTL8111H |
| DisplayPorts quantity : | 1 |
| Processor socket : | LGA 1700 |
| Memory channels : | Dual-channel |
| Supported memory types : | DDR4-SDRAM |
| Windows operating systems supported : | Windows 10 Education x64 |
| Windows operating systems supported : | Windows 11 x64 |
| PS/2 ports quantity : | 1 |
| Number of SATA III connectors : | 4 |
| Line-in : | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity : | 1 |
| DisplayPort version : | 1.4 |
| Audio chip : | Realtek ALC897 |
| Motherboard form factor : | micro ATX |
| Audio output channels : | 7.1 channels |
| BIOS type : | UEFI AMI |
| PCI Express x1 (Gen 3.x) slots : | 2 |
| PCI Express x16 (Gen 4.x) slots : | 1 |
| USB 2.0 connectors : | 3 |
| Parallel processing technology support : | Not supported |
| RAID support : | Yes |
| Supported storage drive interfaces : | M.2, SATA III |
| CPU fan connector : | Yes |
| ATX Power connector (24-pin) : | Yes |
| Maximum number of SMP processors : | 1 |
| Motherboard chipset family : | Intel |
| TPM connector : | Yes |
| Unbuffered memory : | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors : | 2 |
| Chassis intrusion connector : | Yes |
| Front panel connector : | Yes |
| EPS power connector (8-pin) : | Yes |
